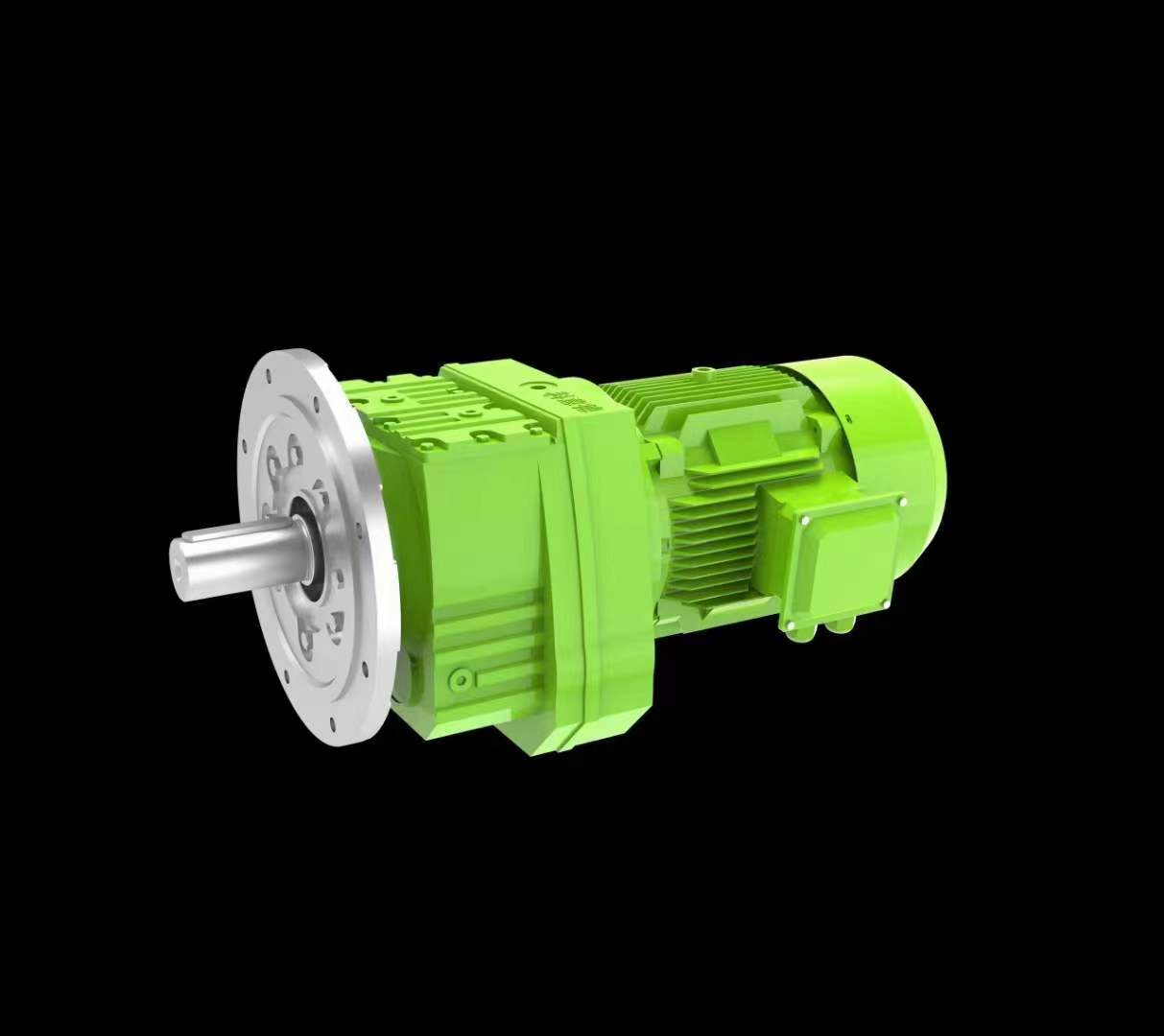

Our helical gearmotors of the series R are ideally suited for a multitude of applications. Thanks to our consistent modular system, the helical gearmotors of the series R offer you many combination options. The helical gearmotors of the series R come in either a foot or flange-mounted design making a range of assembly options possible. Especially when you are looking for a space-saving drive solution.
Characteristics Features
◆ Low backlash gearmotor designed with flexible and modular concept.
◆ Small size and large center distance transmission structure, with 10% higher torque transmission capacity and load shock resistance.
◆ The FEA design of the casting housing, which improves the running stability by 30% and effectively reduces the noise of the whole machine.
◆ The large-modulus gear design and enhanced bearing arrangement ensure higher reliability and longer service life.
◆ Up to 95% modular design, faster production and logistics cycles.
◆ Higher power density can save you mounting space and the overall structure is more compact.
◆ High reliability and long design life can effectively reduce your use and maintenance costs.
Model TYPE | R / RF / RX | |
TYPE SIZE | 19 /29 / 39 ..... 169 /179 | |
TORQUE RANGE | [Nm] | |
RATIO RANGE | 1.65 ~ 27001 | |
POWER RANGE | KW | 0.12 ~ 160 |

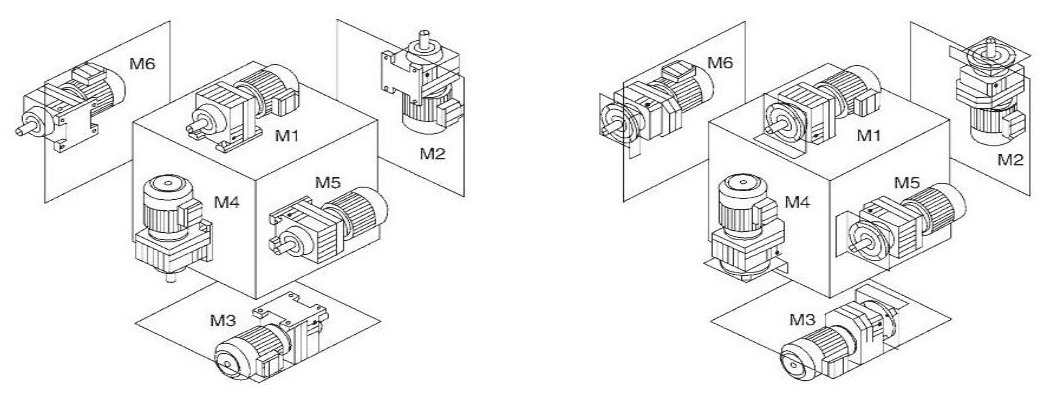

Mounting Arrangements Description
M1-horizontally mounted motor,unit base is at bottom. M2-motor is vertically mounted downwards. M3-horizontally mounted motor,unit base is top. M4-motor is vertically mounted upwards. M5-horizontally mounted motor,if placed on M1 position,left side of unit turns to bottom(view point:towards from motor side). M6-horizontally mounted motor,if placed on M1 position,left side of unit turns to top(view point:towards from motor side) |  |
Typical application
conveyor belt, Transportation of packaged products, vertical conveyor
