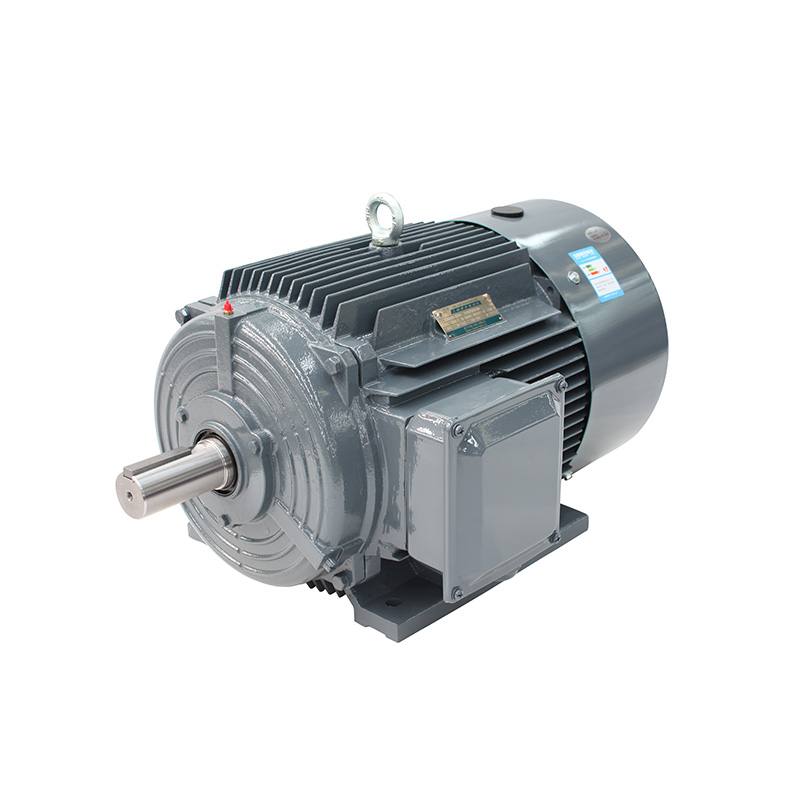

1TL0004 Series IE4 Low-voltage Three-phase Electric motor

1TL0004 series of motors is the newly designed high efficiency low voltage three phase asynchronous motor, the housing material is cast iron, is designed for continuous duty operation(S1). 1TL0004 series of motors owns the features of high efficiency, novel structure, beautiful appearance, low noise, small vibration, high degree of insulation, etc.

Bearing system
1TL0004 series motors are supplied with the ball bearingas standard. These bearings are either of the sealed or regreasable type.
For FS100 ~ 160, the floating bearings are assembled;
For FS180 ~ 355, floating bearing at DE, and fixed bearing at NDE assembled.
The standard bearing can endure a maximum cantilever force,the increased cantilever bearing design should be considered.

Anti-condensation heater

Motors whose windings are at risk of condensation due to the climatic conditions, e.g. inactive motors in humid atmospheres or motors that are subjected to widely fluctuating temperatures can be equipped with anti-condensation heaters。 Anti-condensation heaters must be switched off during operation. When motor shut down, the heaters must be switched on.

  • 1TL0004

  • BEIDE

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

 Rated output：0.55 ~ 315 kW

Frame size：80 ~ 355

Voltage and Frequency：support  multiple voltage and frequency

 Cooling method：IC411

Oiling device：FS180~355 motor  as standard

 Degree of protection：IP55

Degree of insulation：F

Coolant temperature：-15 ~ 40 ºC

Site altitude above see level：not exceed 1000 m


1TL0004 series of motors is the newly designed high efficiency  low voltage three phase asynchronous motor, the housing  material have two options, cast iron or aluminum1), is  designed for continuous duty operation(S1). 1TL0004 series of  motors owns the features of high efficiency, novel structure,  beautiful appearance, low noise, small vibration, high degree  of insulation, etc, also can be used in the fields of fans, pump,  compressors and textile machine.
