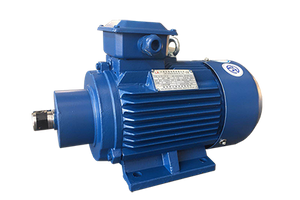

IEC Metric Motors from 71 to 315 frame size
Totally Enclosed Fan Cooled (TEFC)
Power range from 0,04 up to 132 kW. Single speed 2,4,6,8 pole o double speed 2/4,4/8, 2/8,2/6,2/12,4/6,4/12,4/16 pole
The A series includes single speed brake motors for continuous duty and IE2 / IE3 efficiency class (regulation EU 2019/1781).
IP 54 enclosure (IP55 on request)
F class insulation
AC or and DC Brake
Very high and adjustable brake torque
Aluminum frame up to 132 frame size, cast iron frame from 160 to 315 frame size
Cast iron flanges starting from 100 frame size
Motors with NEMA dimensioned shafts and flanges available on request
The brake moving element and the brake coil have a laminated magnetic nucleus to reduce losses and to allow very fast brake
The cooling fan is fitted between the motor and the braking assembly
