* Frame sizes:63 to 160
* Rated output: 0.12 to 18.5kW
* Voltage: 220V/380V
* Frequency: 50Hz or 60Hz
* Number of poles: 2, 4, 6, 8
* Efficiency levels: IE2
* Duty Cycle: S1
* Enclosure: IC411 – TEFC
* Insulation class: F
* Degree of protection: IP55

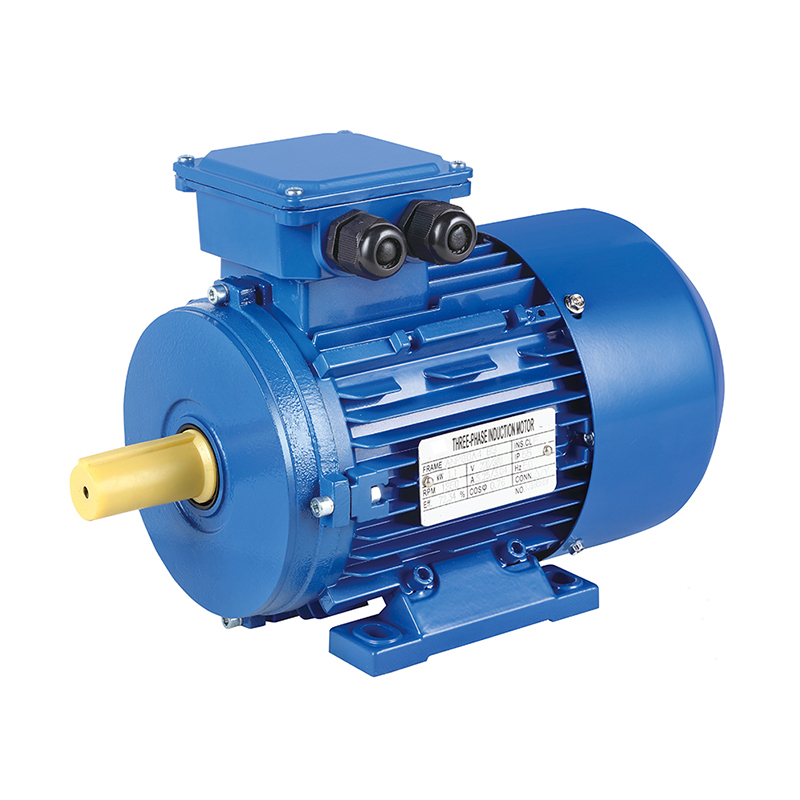

The aluminum three phase low voltage electric motor design conforms to IEC standard. It is widely applied in the field with high requirement on quality and reliability, such as manufacturing, commerce, construction, water supply and agricultural irrigation, etc.
Common frame size corresponding to the power:
Frame Size | 63 | 71 | 80 | 90 | 100 | 112 | 132 | 160 |
Power range kW | 0.12~0.25 | 0.18~0.55 | 0.18~1.1 | 0.37~2.2 | 0.75~3 | 1.5~4 | 2.2~7.5 | 4~18.5 |
Poles | 2.4 | 2.4.6 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 | 2.4.6.8 |
Remark: For the other special rated powers, please contact with us.
